DISCOVER A NEW ELECTRIC PROPULSION SYSTEM
Transfluid developed its own electric machines mounted both on the hybrid groups and on the EPSs (Electric Propulsion Systems). The latter are the combination of the electric motor and a gearbox, which is also Transfluid supply.

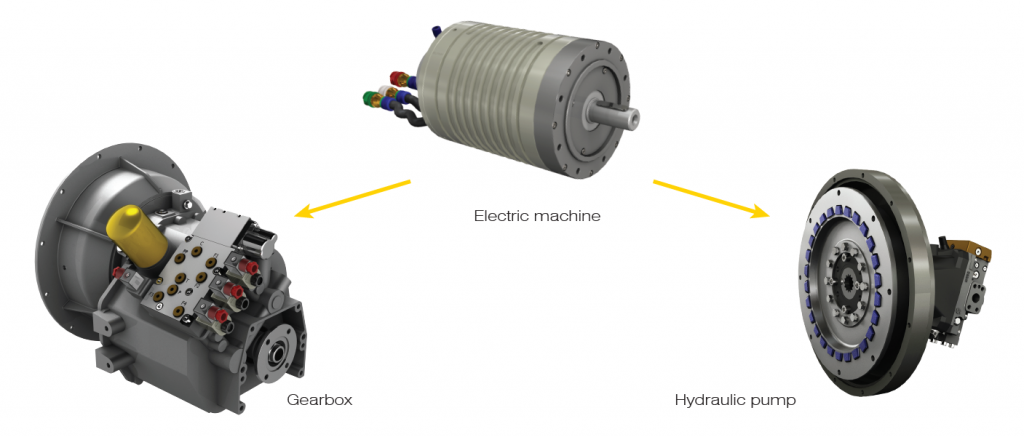

Possible combinations with Transfluid products

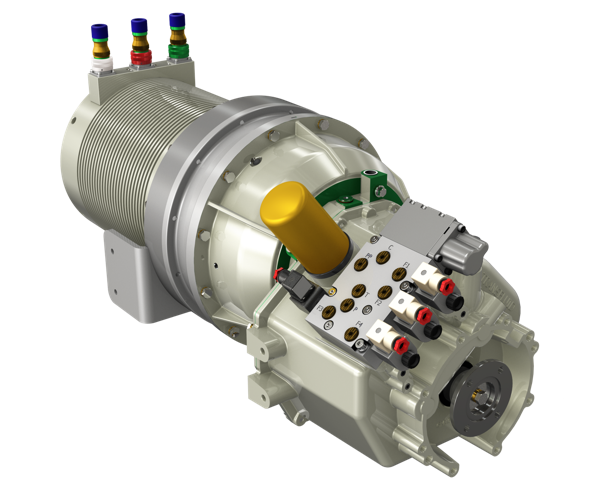

The EPS allows the vehicle designer to overlook the propulsion mode (electric or with internal combustion engine) when designing. The EPS innovative concept consists in the RANGERMATIC automatic “Powershift” transmission coupled to a permanent magnets electric motor, optimizing the vehicle driving and enhancing the engine performance. Thanks to the RANGERMATIC reduction ratios, you may always have the optimal ratio according to operating conditions. RANGERMATIC also offers two speed reverse gear, protecting the components from transient current peaks. Some of the main applications for Industrial on-road and off-road vehicles for example: Airport Vehicle sector (GSI) and Road Train sectors.

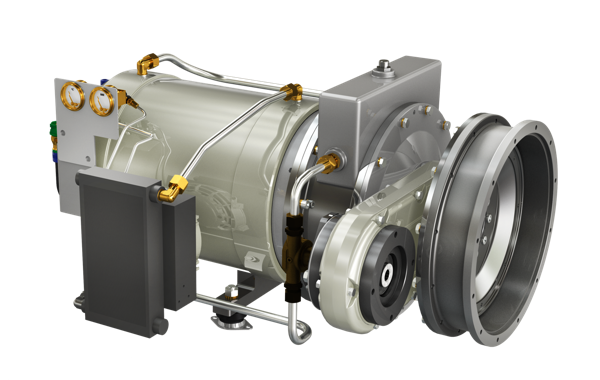

Permanent magnet technology. 100 kW (134hp)@3000rpm
The Tier-G is a high efficiency electric motor, that means energy saving - higher battery operation time (when not connected to the grid for industrial applications). No vibrations, very low noise compared to internal combustion engines, compact size, high power/weight ratio and very flexible torque profile.

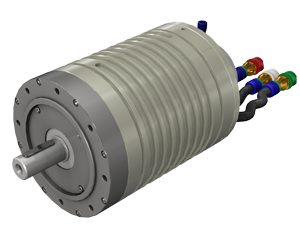

EM: Transfluid manufactures three-phase, permanent magnet, synchronous electric machines (PMSM) with natural convection air cooling. This solution ensures high efficiency and simplicity with a limited weight and size. The PMSM machine is operated by a Motor Controller (Frequency Drive) allowing it to work both as a motor and as a generator. The electric machines range and controllers perfect integration allows a compact installation, as well as easy and effective management during any operational phase.
PMSM-Permanent Magnet Synchronous Machine. From 8 to 100 kW.
Road Trains
GSE
Agriculture Machinery
Crushers
Dredges
Earth Moving Machine
Excavators
Forest Machinery
Fork Lift Trucks
Ground Support Equipment
Mobile Cranes
Railway
Recycling Machinery
Road Compactors
Road Milling
Machine
Road Sweepers
Special Vehicles
Tractors
DISCOVER A NEW ELECTRIC PROPULSION SYSTEM
EPS Transfluid developed its own electric machines mounted both on the hybrid modules and on the EPSs (Electric Propulsion Systems). The latter are the combination of the electric motor and any marine transmissions.

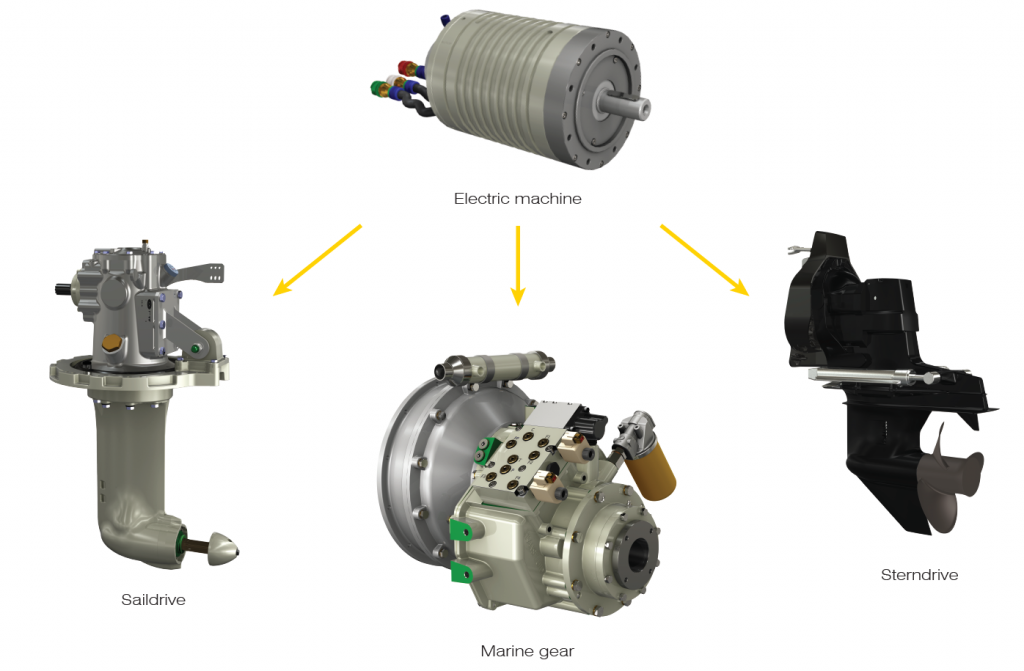

Possible combinations with Transfluid products
The EPS allows the yacht designer to overlook the propulsion mode (electric or with internal combustion engine) when designing. The EPS innovative concept consists in the marine gear coupled to a permanent magnets electric motor, optimizing the boat driving and enhancing the engine performance. Thanks to the different available reduction ratios, you may always have the optimal rpm according to operating conditions. For all kind of application for boats and vessels, as main or auxiliary propulsion.
Permanent magnet technology. 100 kW (134hp)@3000rpm
The Tier-G is a high efficiency electric motor, that means energy saving - higher battery operation time (when not connected to the grid for industrial applications). No vibrations, very low noise compared to internal combustion engines, compact size, high power/weight ratio and very flexible torque profile.
EM: Transfluid manufactures three-phase, permanent magnet, synchronous electric machines (PMSM) with both natural convection air cooling or liquid cooling. This solution ensures high efficiency and simplicity with a limited weight and size. The PMSM machine is operated by a Motor Controller (Frequency Drive) allowing it to work both as a motor and as a generator. The electric machines range and controllers perfect integration allows a compact installation, as well as easy and effective management during any operational phase.

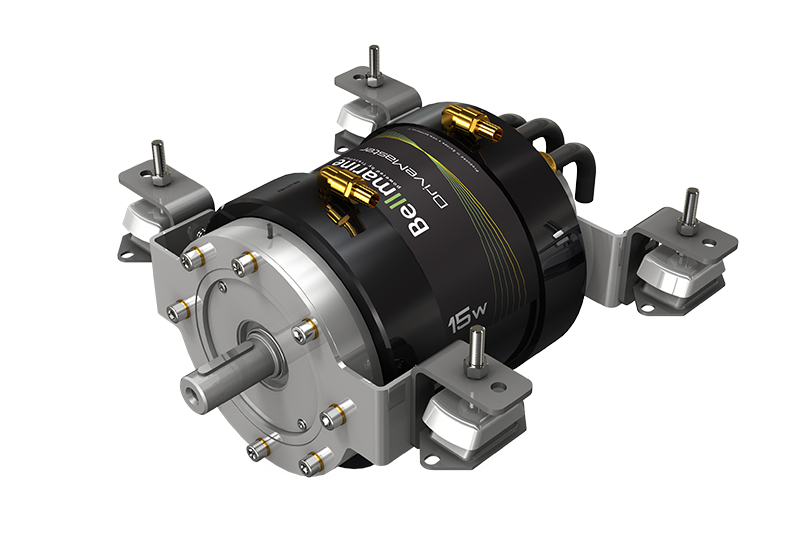

PMSM-Permanent Magnet Synchronous Machine. From 8 to 100 kW.
Rapid charge, whenever you want

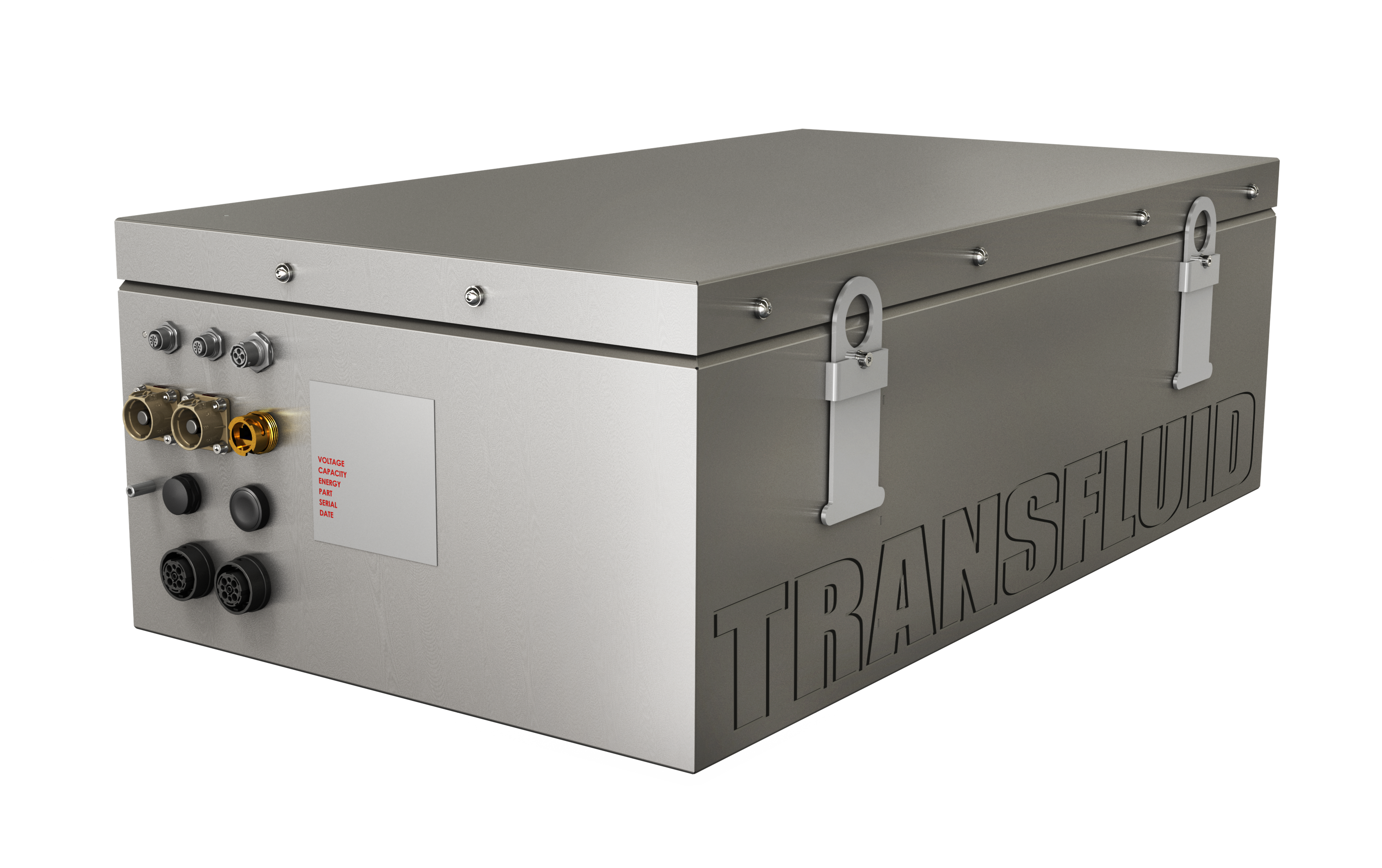

Transfluid’s battery is based on lithium iron phosphate cells (LiFePO4). This battery gives great usage flexibility and reduces the total ownership costs, thanks to its 3000 cycles lifespan. The absence of emissions and the extended operating temperature range make Transfluid’s battery perfectly suited for every workplace.
E34 Bavaria yacht with EM
Electric passenger vessel
Any kind of work vessels and pleasure boats

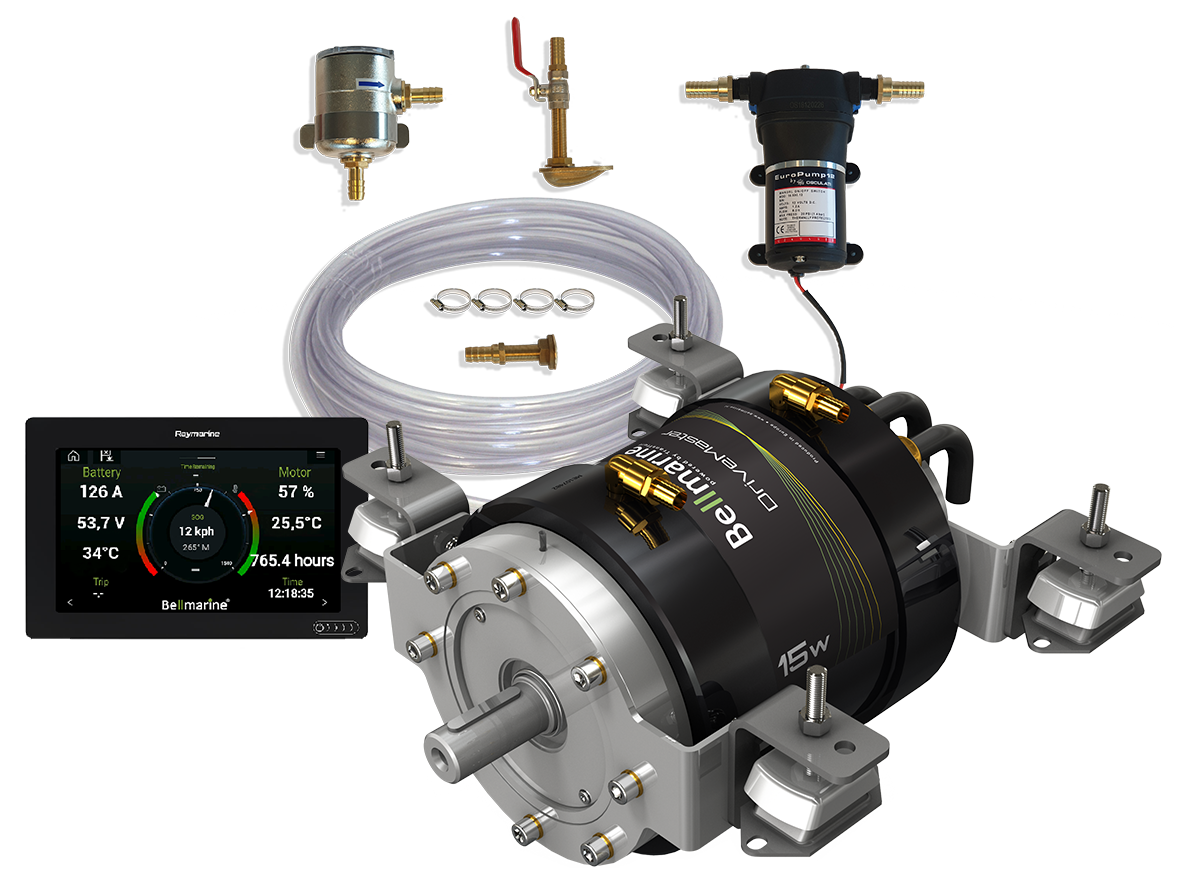

To expand and develop its range of electric propulsion products, Transfluid has acquired 100% of the shares in IDTechnology B.V., a company which develops and manufactures complete and customized electric drive systems for batteries for a large number of customers, for industrial and automotive applications and is the owner of the well-known “Bellmarine” brand. This strategic move provides Transfluid a broad array of solutions that satisfies most needs for electric and hybrid powertrains for the boating and vessel market, in addition to the industrial market.
The Bellmarine brand is the leader of electric propulsion in the Netherlands and is well established in the European market with over 4000 systems sold. The joining of the two companies enables Transfluid to offer electric and hybrid solutions suitable for all kinds of marine, inland waters or off-shore applications as well as a range of electrical propulsion power that is unique in the world.
